Siemens 6AV6645-0AC01-0AX0 SIMATIC MOBILE PANEL 177 DP W. INTEGRATEDENABLING BUTTON,STOP BUTTON, HANDWHEEL,KEY SWITCH AND ILLUMINATED

Control Elements

1. Keypad: The panel includes a membrane keyboard with user-definable label membrane keys, 14 function keys (8 with LEDs), system keys, a numeric keyboard, an alphanumeric keyboard, and a hexadecimal keyboard. Multi-key operation is supported, with the capability for two multi-key operations.
2. Special Operator Controls: This includes a stop button, acknowledgment button, key-operated switch, illuminated pushbutton, and a handwheel for precise control.

Power Supply and Processor

1. Supply Voltage: The power supply is designed via a connection box and operates on DC voltage.
2. Processor: It is equipped with a RISC 32-bit processor running at 200 MHz, ensuring efficient processing and fast response times.

Memory

1. Type and Capacity: The device uses Flash and RAM memory, offering 2,048 KB of space for user data.

Connectivity and Interfaces

1. Interfaces: It includes 1 x RS422 and 1 x RS485 interfaces, supporting a maximum transmission rate of 12 Mbit/s. However, it does not have USB, parallel, wireless, PC card, CF card, or multimedia card/SD card slots.
2. Industrial Ethernet and Protocols: The panel does not support Industrial Ethernet or PROFINET, but it does support PROFIBUS and MODBUS, among other bus systems.

Protection and Certifications

1. Degree of Protection: The device is rated IP65 according to EN 60529, indicating a high level of protection against dust and water.
2. Certifications: It has CE, cULus, C-TICK, and SIBE certifications, and is suitable for safety functions up to Performance level d according to ISO 13849-1.

Operating Conditions

1. Temperature: It operates between 0 °C and 40 °C, and can be stored or transported in temperatures ranging from -20 °C to 60 °C.
2. Relative Humidity: The panel can operate in up to 80% relative humidity.

Software and Configuration

1. Operating System: The panel runs on a pre-installed Windows CE operating system.
2. Configuration Software: It can be configured with WinCC flexible Compact Version 2005 or higher and is compatible with various versions of the TIA Portal.
3. Functionality: The panel supports up to 32 alarm classes, 2,000 messages (bit and analog), recipe management, and numerous image objects and dynamic objects.

Physical Characteristics

1. Materials: The enclosure's front is made of plastic, suitable for industrial environments.
2. Dimensions: The enclosure diameter is 245 mm with a depth of 58 mm.


FAQ & Contact:

Q: Are you a trading company or a manufacturer?
A: We are a trading company.

Q: What is your lead time?
A: It usually takes one to three days if we have it in stock. If the goods are not in stock, you need to negotiate.

Q: Does your company provide samples? Is it free or do you charge extra?
A: It depends on the goods you need and the quantity you order.

Q: What are your terms of payment?
A: 100% T/T before shipping. If the quantity is large, we can negotiate.



Our Services:
1, All our products are new and original, and of good quality.
2, Our prices are very competitive.
3, We have a large quantity in stock, so we could help the customers to get the components which are difficult to get.
4, All inquiries will be valued and will reply in 24.



Packing & Delivery:
1)100% brand New and Original Factory Seal!
2)Warranty: 1 year

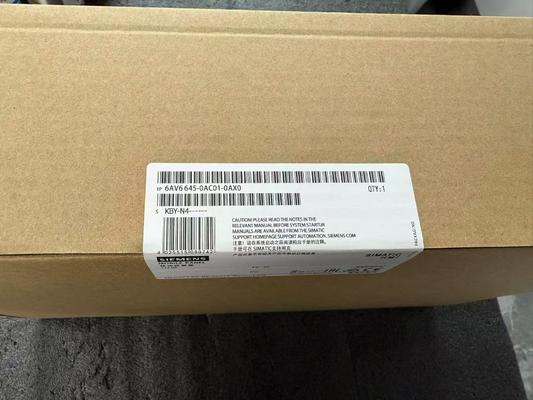

3)Package: Original packing with cartons.
